PNEU • HYDRO

SOLIDRING

Large range
Cuts and bevels simultaneously
Can follow the ovality of the pipe
Machining of any material

Contact the seller

Technical parameters

Description

Accessories

Technical parameters

Pneumatic version

Model:	P-WYDE 06—12	P-WYDE 12—18	P-WYDE 18—24	P-WYDE 24—30	P-WYDE 30—36	P-WYDE 36—42	P-WYDE 42—48	P-WYDE 48—54	P-WYDE 54—60
Clamping range (mm)	152,4—304,8	304,8—457,2	457,2—609,6	609,6—762	762—914,4	914,4—1066,8	1066,8—1219,2	1219,2—1371,6	1371,6—1524
Radial lift (mm)	60	60	60	60	60	60	60	60	60
Depth of cut (mm/rev)	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
Idle speed (rpm)	25	20	16	14	12	10	9	8	8
Max. torque (Nm (6 bar))	570	690	876	1035	2x 1394	2x 1532	2x1712	2x1712	2x1865
Motor power (kW)	3.1	3.1	3.1	3.1	3.1	2x3,1	2x3,1	2x3,1	2x3,1
Air consumption (l/min)	2800	2800	2800	2800	2800	2800	2800	2800	2800
Air working pressure (bat)	6-8	6-8	6-8	6-8	6-8	6-8	6-8	6-8	6-8
Weight (kg)	143	176	225	270	336	366	410	466	515

Hydraulic version

Model:	H-WYDE 06-12	H-WYDE 12-18	H-WYDE 18-24	H-WYDE 24-30	H-WYDE 30-36	H-WYDE 36-42	H-WYDE 42-48	H-WYDE 48-54	H-WYDE 54-60
Clamping range (mm)	152,4—304,8	304,8—457,2	457,2—609,6	609,6—762	762—914,4	914,4—1066,8	1066,8—1219,2	1219,2—1371,6	1371,6—1524
Radial shift (mm)	60	60	60	60	60	60	60	60	60
Idle speed (rpm)	29	24	19	17	14	13	11	10	9
Depth of cut/rev: (mm/rev)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power (W)	11185	11185	11185	11185	11185	11185	11185	11185	11185
Oil flow (l/min)	40	40	40	40	40	40	40	40	40
Oil working pressure (bar)	180	180	180	180	180	180	180	180	180
Weight (kg)	143	175	225	270	336	366	410	466	515

Electric version

Model:	E-WYDE 06-12	E-WYDE 12-18	E-WYDE 18-24	E-WYDE 24-30	E-WYDE 30-36	E-WYDE 36-42	E-WYDE 42-48	E-WYDE 48-54	E-WYDE 54-60
Clamping range (mm)	152,4—304,8	304,8—457,2	457,2—609,6	609,6—762	762—914,4	914,4—1066,8	1066,8—1219,2	1219,2—1371,6	1371,6—1524
Radial shift (mm)	60	60	60	60	60	60	60	60	60
Idle speed (rpm)	22	18	15	12	10	9	8	7	7
Max. torque (Nm)	758	917	1163	1375	1587	1850	2063	2275	2486
Depth of cut (mm/rev)	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
Motor power (W)	2400	2400	2400	2400	2400	2400	2400	2400	2400
Tension: (V)	230	230	230	230	230	230	230	230	230
Frequenzy (Hz)	50	50	50	50	50	50	50	50	50
Weight (kg)	143	175	225	270	336	366	410	466	515

SOLIDRING

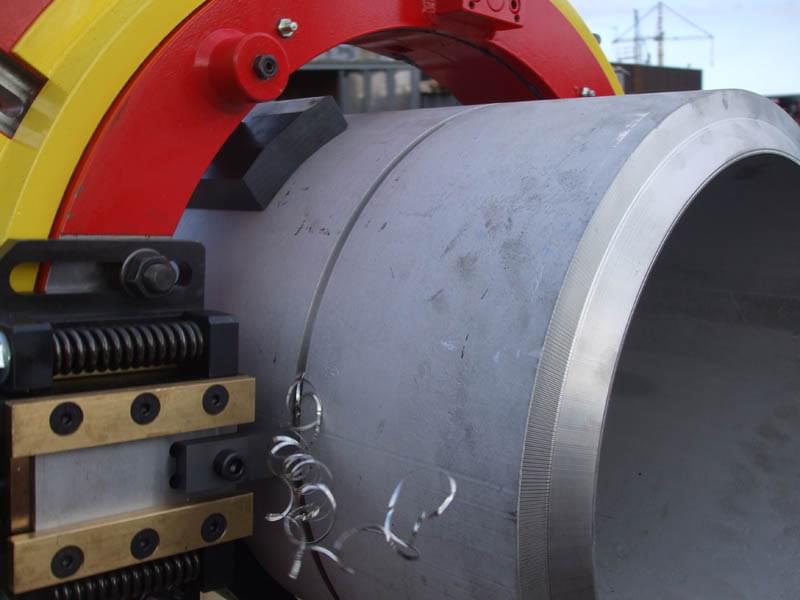

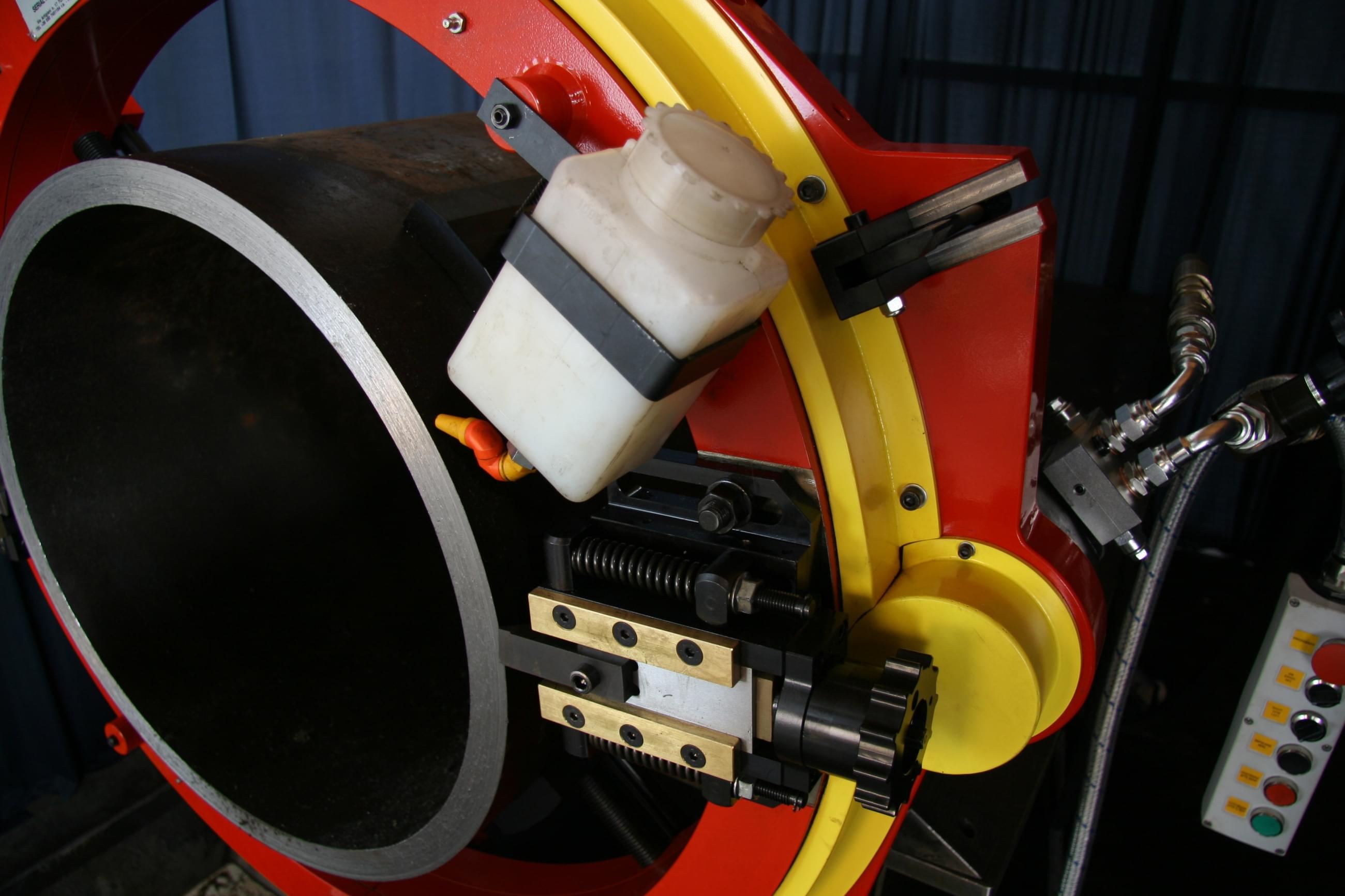

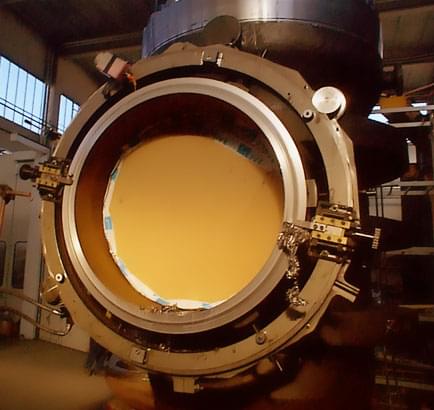

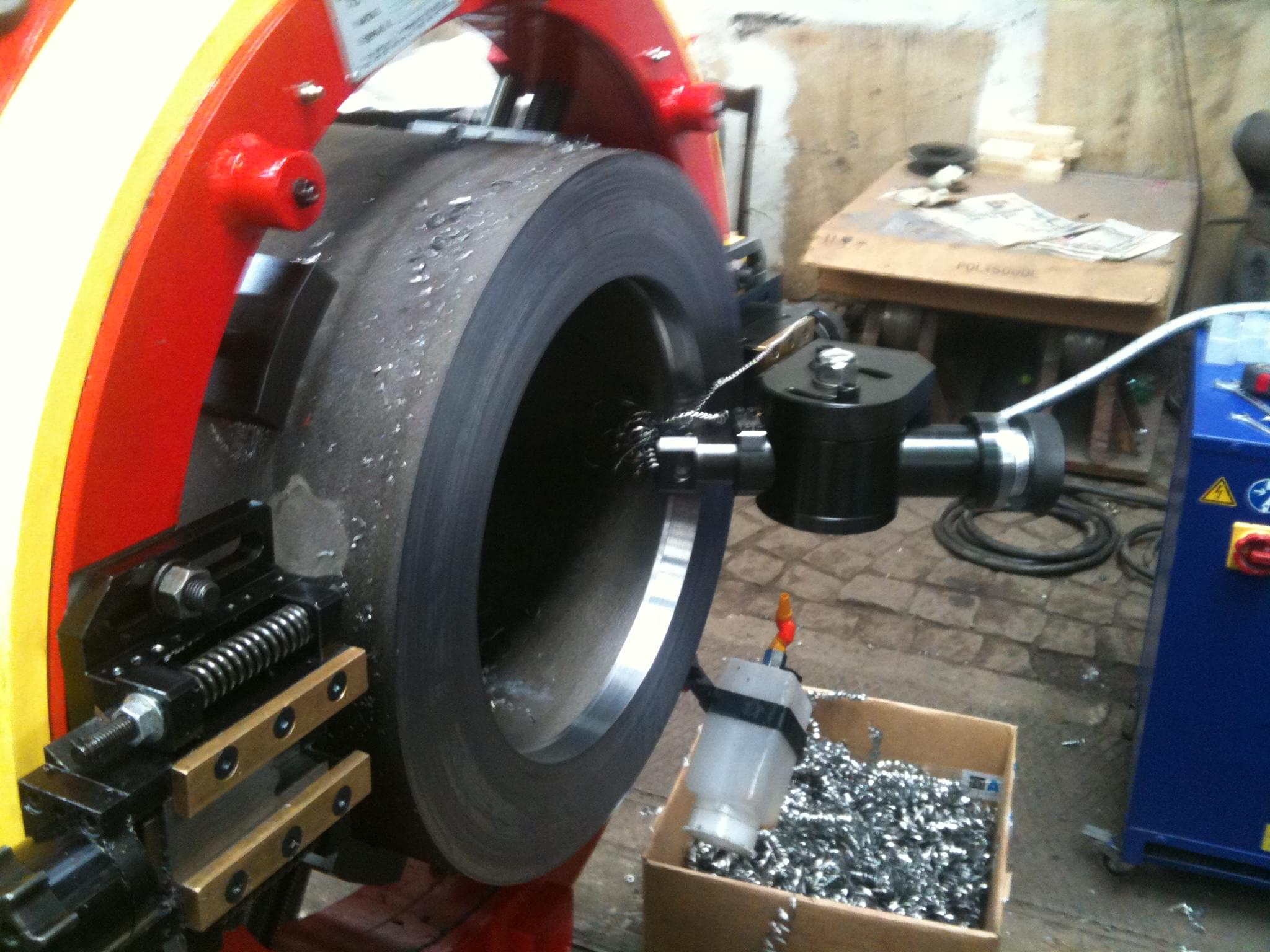

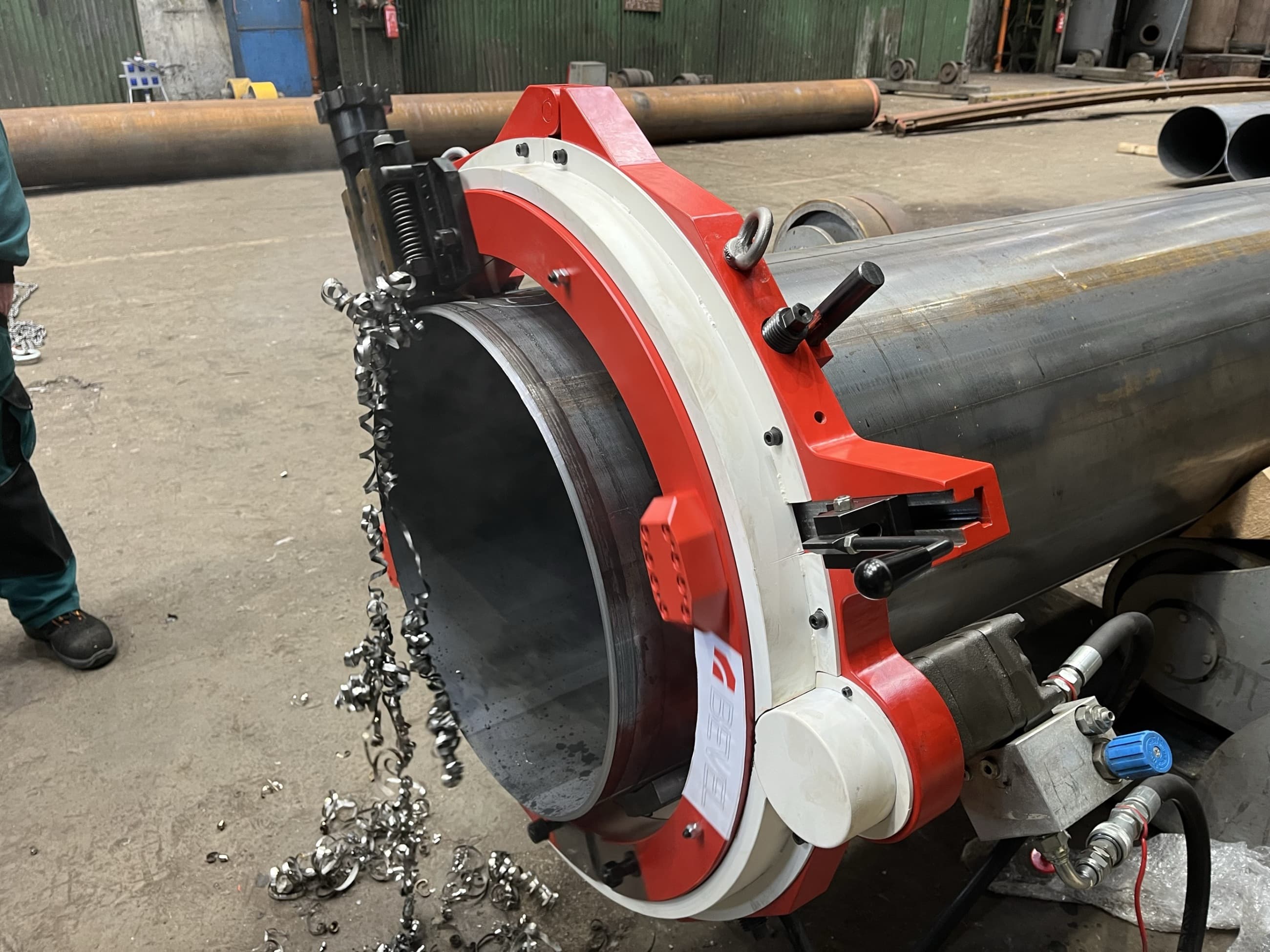

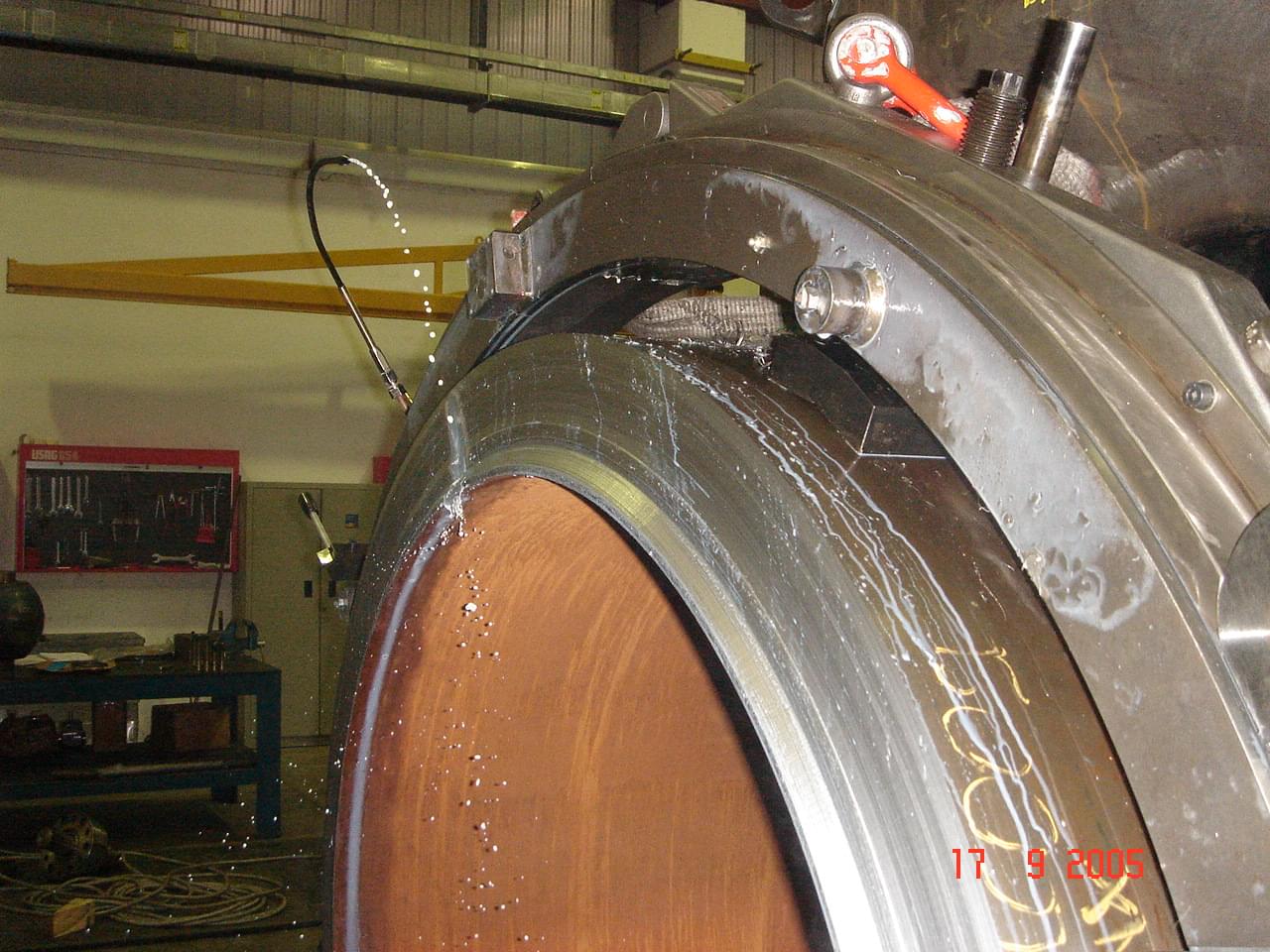

SOLIDRING is a very powerful machine with external clamping, it allows to separate and make a bevel on a pipe with a wall thickness up to 100 mm. The machine concept is based on a circular frame in which two knife holders move.

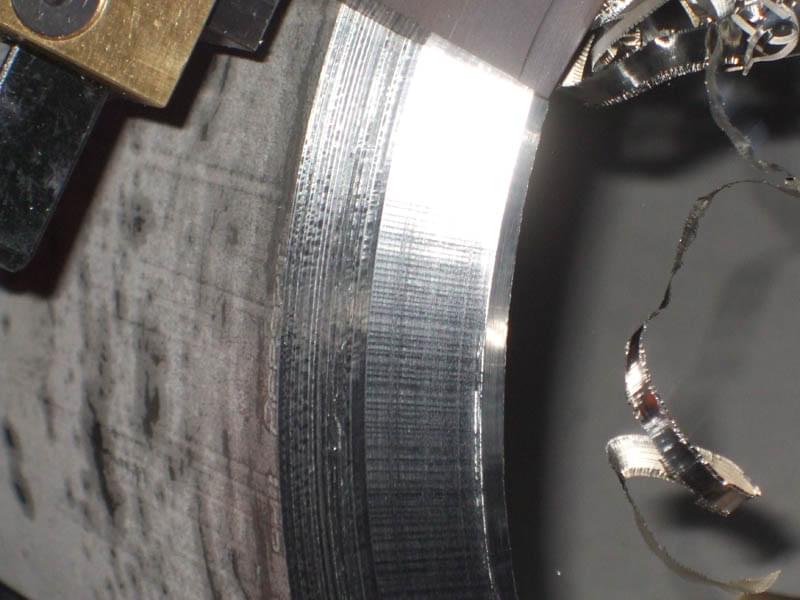

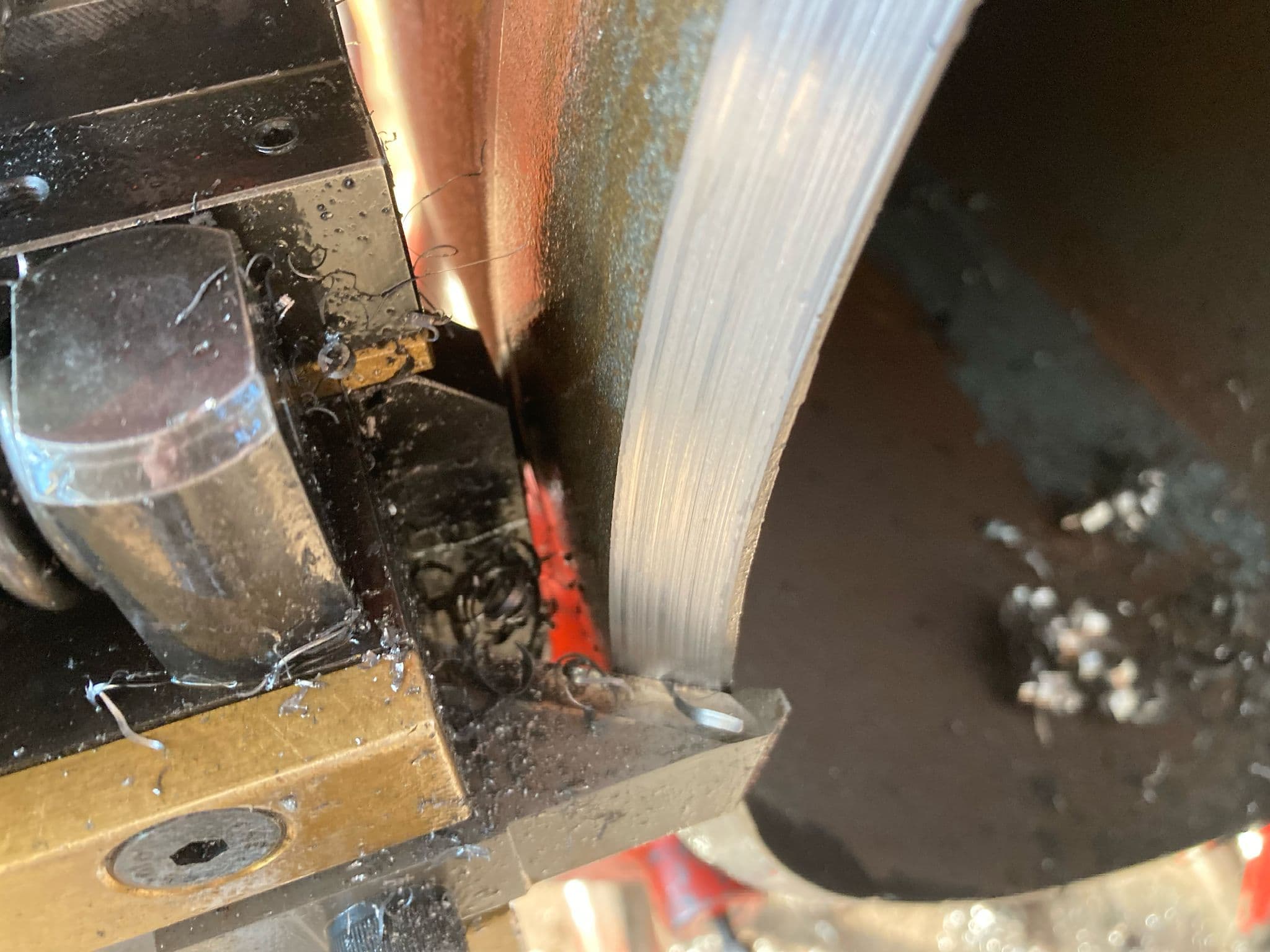

The SOLIDRING external clamping pipe beveler and splitter works on the principle of mechanical material cutting with the clamping and beveling knives. The knives first clamp the pipe and after replacing them with the bevel knives, they make the bevel. For wall thicknesses up to 30 mm, both operations can be carried out simultaneously using a combination knife.

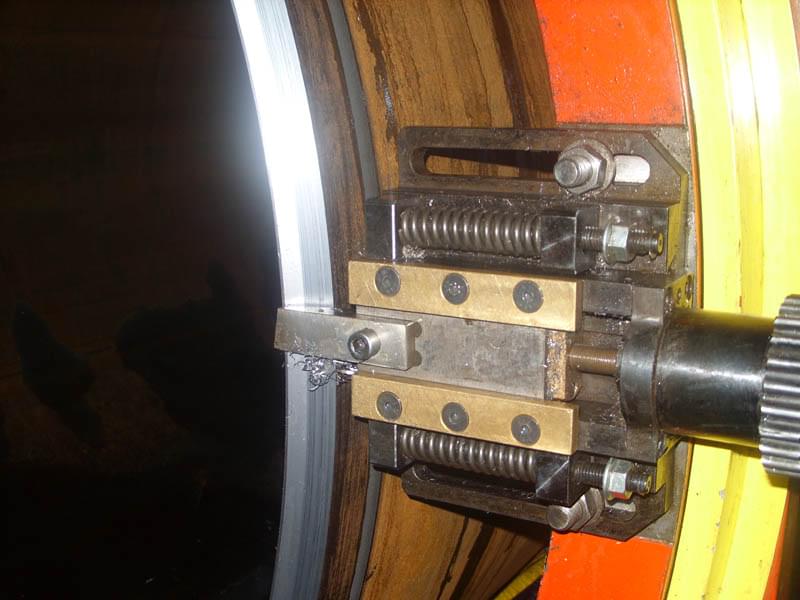

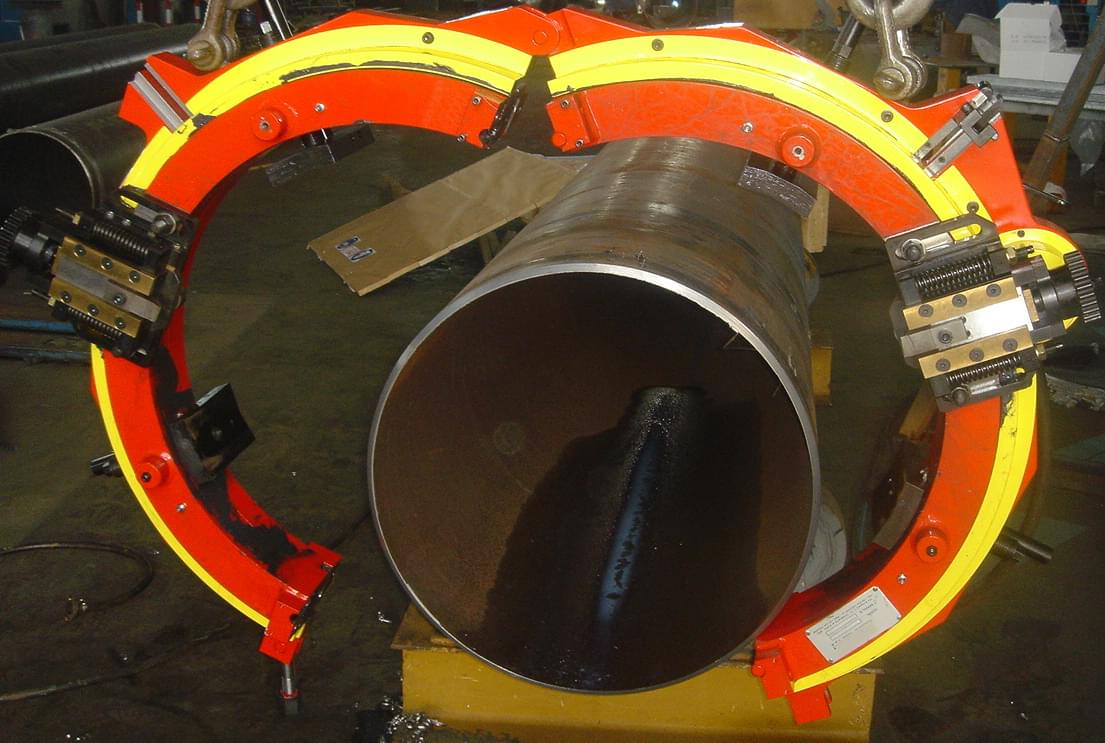

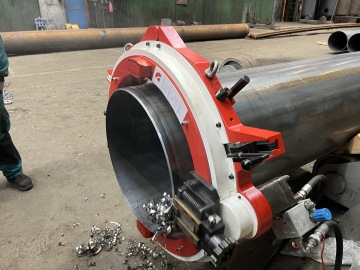

The great advantage of the circular frame concept is the possibility of mounting the machine on the line (the frame can be opened into two C segments). The tool holders (dancer) allow the knives to move in a circular pattern or alternatively to follow the surface of the pipe, so that beveling can be carried out even on pipes with significant ovality.

The design of the SOLIDRING machine is highly robust and can withstand severe operating conditions.

SOLIDRING can be supplied with pneumatic or hydraulic propulsion.
